Parallel steps inside a pipeline

Tasks inside a pipeline come in handy when you need to run a hyperparameter optimization or parameter sweep as part of a pipeline.

All the outputs of the Task node will be passed to the next node.

A pipeline can consist of executions, tasks or deployments. Below you’ll find an example of a pipeline where the train node is defined as type: task.

- pipeline:
    name: Training Pipeline
    nodes:
      - name: preprocess
        type: execution
        step: Preprocess dataset (MNIST)
      - name: train
        type: task
        step: Train model (MNIST)
        on-error: stop-all
        override:
          inputs:
              - name: training-set-images
              - name: training-set-labels
              - name: test-set-images
              - name: test-set-labels
      - name: evaluate
        type: execution
        step: Batch inference (MNIST)
    edges:
    - [preprocess.output.*train-images*, train.input.training-set-images]
    - [preprocess.output.*train-labels*, train.input.training-set-labels]
    - [preprocess.output.*test-images*, train.input.test-set-images]
    - [preprocess.output.*test-labels*, train.input.test-set-labels]
    - [train.output.model*, evaluate.input.model]

On-Error behavior

By default, the whole pipeline node will stop if a single job in the Task errors. You can change this default behavior by setting the on-error property for the node.

The options are:

• stop-all: This is the default behavior. If one execution is the Task node fails the whole node will be errored and the pipeline stopped.
• continue: Continue executing the Task node, even if an execution inside the Task errors. The expectation is that at least one of the executions in the Task has been completed successfully.
• stop-next: Stops only the nodes that follow the errored node.

Example

The below example shows a pipeline with two parallel task nodes.

- pipeline:
    name: Training Pipeline
    nodes:
      - name: preprocess
        type: execution
        step: preprocess-dataset
      - name: train
        type: task
        on-error: stop-next
        step: train-model
        override:
          inputs:
            - name: dataset
      - name: evaluate
        type: execution
        step: batch-inference
      - name: train2
        type: task
        on-error: continue
        step: train-model
        override:
          inputs:
            - name: dataset
      - name: evaluate2
        type: execution
        step: batch-inference
    edges:
      - [preprocess.output.preprocessed_mnist.npz, train.input.dataset]
      - [preprocess.output.preprocessed_mnist.npz, train2.input.dataset]
      - [train.output.model*, evaluate.input.model]
      - [train2.output.model*, evaluate2.input.model]

• train is defined with on-error: stop-next
• train2 is defined with on-error: continue

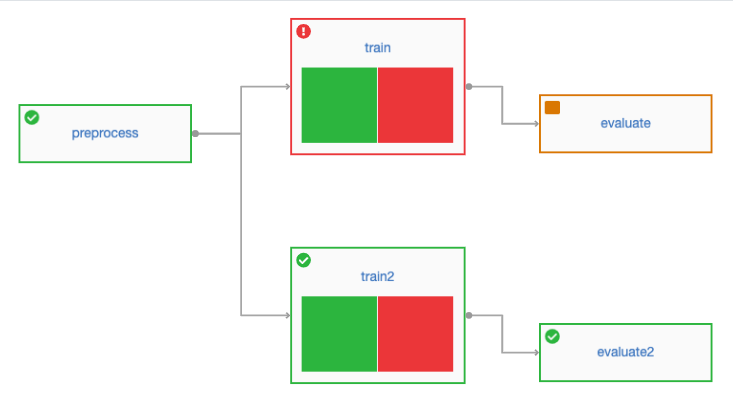

Each of the task nodes run 2 executions, and in each of them, one of the executions will fail.

Based on our on-error rules:

• When an execution in train fails, it will fail the whole node and the pipeline won’t continue to the next nodes of that path.
• Even if an execution in train2 fails, the node will be marked as a successful and we’ll continue to execute the next step in that path: the evaluate2 node.

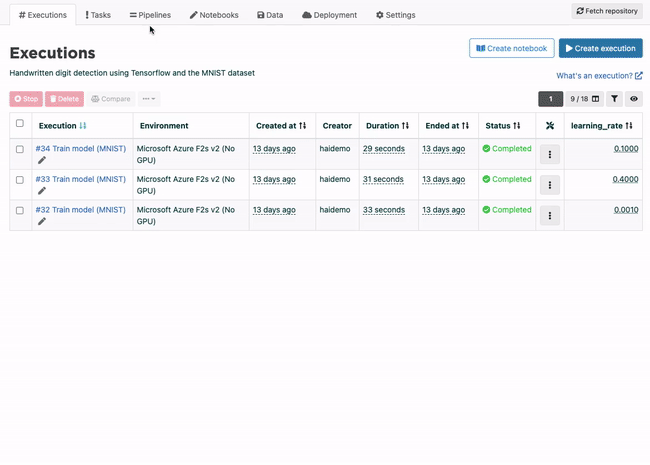

Launch using the user interface

You can easily convert any existing execution node in a pipeline to a task node in the user interface.

• Open your project’s pipelines tab
• Create a new pipeline
• Select the right blueprint from the drop-down menu
• Click on a node that has parameters
• Click on Convert to task (below the graph)
• Scroll down to the Parameters section and configure your Task
• Create a pipeline
