Hybrid Deployment manually

The Compute and Data Layer of Valohai can be deployed to your AWS Account. This enables you to:

  • Use your own EC2 instances to run machine learning jobs.
  • Use your own S3 Buckets for storing training artefacts such as trained models, preprocessed datasets, visualizations, etc.
  • Access databases and data warehouses directly from the workers, which are inside your network.

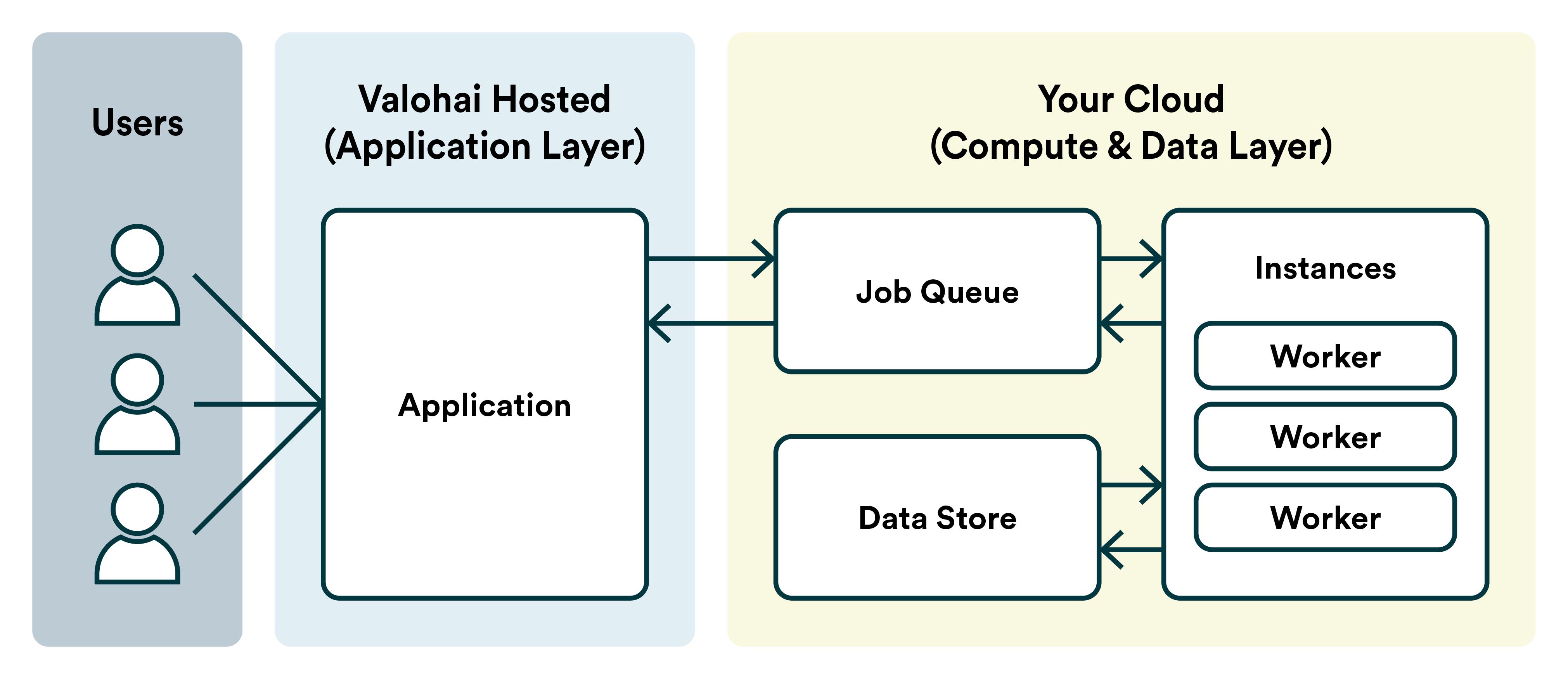

Valohai doesn’t have direct access to the EC2 instances that execute the machine learning jobs. Instead it communicates with a static EC2 instance in your AWS subscription that’s responsible for storing the job queue, job states, and short-term logs.

Valohai Environment

Before running the template you’ll need the following information from Valohai:

  • valohai_assume_user is the ARN of the user Valohai will use to assume a role in your AWS subscription to manage EC2 instances.
  • queue_address will be assigned for the queue in your subscription.

Configure the IAM roles

The 4 roles listed below are required for a Valohai installation.

  • ValohaiQueueRole will be attached to the Valohai Queue instance, and allows it to fetch the generated password from your AWS Secrets Manager. Access is restricted to secrets that are tagged valohai:1.
  • ValohaiWorkerRole is attached to all autoscaled EC2 instances that are launched for machine learning jobs.
  • ValohaiS3MultipartRole will be used to upload files larger than 5GB.
  • ValohaiMaster is the role that the Valohai service will use to manage autoscaling and EC2 resources. The role is also used to manage the newly provisioned valohai-data-* S3 Bucket.

Create the 4 policies listed below by going to your AWS Console > IAM > Policies.

Update the following placeholders in ValohaiMaster and ValohaiS3MultipartPolicy before you save the policies:

  • valohai-data-<AWS-ACCOUNT-ID> with your AWS account ID (e.g., valohai-data-123456789).
  • <AWS-ACCOUNT-ID> with your AWS Account ID.

ValohaiQueuePolicy

{
  "Version": "2012-10-17",
  "Statement": [
      {
          "Sid": "0",
          "Effect": "Allow",
          "Action": [
              "secretsmanager:GetResourcePolicy",
              "secretsmanager:GetSecretValue",
              "secretsmanager:DescribeSecret",
              "secretsmanager:ListSecretVersionIds"
          ],
          "Resource": "*",
          "Condition": {
              "StringEquals": {
                  "secretsmanager:ResourceTag/valohai": "1"
              }
          }
      },
      {
          "Sid": "1",
          "Effect": "Allow",
          "Action": "secretsmanager:GetRandomPassword",
          "Resource": "*"
      }
  ]
}

ValohaiWorkerPolicy

{
  "Version": "2012-10-17",
  "Statement": [
      {
          "Action": "autoscaling:SetInstanceProtection",
          "Resource": "*",
          "Effect": "Allow",
          "Sid": "1"
      },
      {
          "Action": "ec2:DescribeInstances",
          "Resource": "*",
          "Effect": "Allow",
          "Sid": "2"
      }
  ]
}

ValohaiS3MultipartPolicy

{
  "Version": "2012-10-17",
  "Statement": [
      {
          "Sid": "MultipartAccess",
          "Effect": "Allow",
          "Action": [
              "s3:AbortMultipartUpload",
              "s3:GetBucketLocation",
              "s3:GetObject",
              "s3:ListBucket",
              "s3:ListBucketMultipartUploads",
              "s3:ListBucketVersions",
              "s3:ListMultipartUploadParts",
              "s3:PutObject"
          ],
          "Resource": [
              "arn:aws:s3:::valohai-data-<AWS-ACCOUNT-ID>",
              "arn:aws:s3:::valohai-data-<AWS-ACCOUNT-ID>/*"
          ]
      }
  ]
}

ValohaiMasterPolicy

{
   "Version" : "2012-10-17",
   "Statement" : [
     {
       "Sid" : "2",
       "Effect" : "Allow",
       "Action" : [
         "ec2:DescribeInstances",
         "ec2:DescribeVpcs",
         "ec2:DescribeKeyPairs",
         "ec2:DescribeImages",
         "ec2:DescribeSecurityGroups",
         "ec2:DescribeSubnets",
         "ec2:DescribeInstanceTypes",
         "ec2:DescribeLaunchTemplates",
         "ec2:DescribeLaunchTemplateVersions",
         "ec2:DescribeInstanceAttribute",
         "ec2:CreateTags",
         "ec2:DescribeInternetGateways",
         "ec2:DescribeRouteTables",
         "autoscaling:DescribeAutoScalingGroups",
         "autoscaling:DescribeScalingActivities"
       ],
       "Resource" : "*"
     },
     {
       "Sid" : "AllowUpdatingSpotLaunchTemplates",
       "Effect" : "Allow",
       "Action" : [
         "ec2:CreateLaunchTemplate",
         "ec2:CreateLaunchTemplateVersion",
         "ec2:ModifyLaunchTemplate",
         "ec2:RunInstances",
         "ec2:TerminateInstances",
         "ec2:RebootInstances",
         "autoscaling:UpdateAutoScalingGroup",
         "autoscaling:CreateOrUpdateTags",
         "autoscaling:SetDesiredCapacity",
         "autoscaling:CreateAutoScalingGroup"
       ],
       "Resource" : "*",
       "Condition" : {
         "ForAllValues:StringEquals" : {
           "aws:ResourceTag/valohai" : "1"
         }
       }
     },
     {
       "Sid" : "ServiceLinkedRole",
       "Effect" : "Allow",
       "Action" : "iam:CreateServiceLinkedRole",
       "Resource" : "arn:aws:iam::*:role/aws-service-role/autoscaling.amazonaws.com/AWSServiceRoleForAutoScaling"
     },
     {
       "Sid" : "4",
       "Effect" : "Allow",
       "Action" : [
         "iam:PassRole",
         "iam:GetRole"
       ],
       "Resource" : "arn:aws:iam::<ACCOUNT-ID>:role/ValohaiWorkerRole"
     },
     {
       "Sid" : "0",
       "Effect" : "Allow",
       "Condition" : {
         "StringEquals" : {
           "secretsmanager:ResourceTag/valohai" : "1"
         }
       },
       "Action" : [
         "secretsmanager:GetResourcePolicy",
         "secretsmanager:GetSecretValue",
         "secretsmanager:DescribeSecret",
         "secretsmanager:ListSecretVersionIds"
       ],
       "Resource" : "*"
     },
     {
       "Action" : "secretsmanager:GetRandomPassword",
       "Resource" : "*",
       "Effect" : "Allow",
       "Sid" : "1"
     },
     {
       "Effect" : "Allow",
       "Action" : "s3:*",
       "Resource" : [
         "arn:aws:s3:::valohai-data-<AWS-ACCOUNT-ID>",
         "arn:aws:s3:::valohai-data-<AWS-ACCOUNT-ID>/*"
       ]
     }
   ]
 }

Next, create the roles listed below by going to your AWS Console > IAM > Roles.

Name Use Case Policy
ValohaiQueueRole EC2 ValohaiQueuePolicy
ValohaiWorkerRole EC2 ValohaiWorkerPolicy
ValohaiS3MultipartRole Another AWS Account Account ID: <YOUR-AWS-ACCOUNT-ID>
ValohaiMaster Another AWS Account Account ID: 635691382966

InstanceProfile

ValohaiQueueRole and ValohaiWorkerRole need to also have instance profiles. They will get automatically created when you create a role through the console. If you’re creating the resources with the AWS CLI, follow the AWS documentation to learn how to create and attach an instance profile to a role.

After creating the ValohaiMaster role, you can go check the trust relationships. The JSON should look like shown below. Note that the ARN here is for the valohai_assume_user.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "",
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::635691382966:user/valohai-customer-<YOUR-COMPANY>"
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

Deploying Resources

We recommend setting up the Valohai resources in a fresh AWS Account. If you prefer to use an existing account and VPC, you’ll need to adapt the instructions below to your environment.

Reach out to support@valohai.com if you have any questions.

Before deploying your resources, you’ll need to get the following information from Valohai:

  • valohai_assume_user is the ARN of the user Valohai will use to assume a role in your AWS subscription to manage EC2 instances.
  • queue_address will be assigned to your job queue.

Resource Details

VPC: valohai-vpc

  • CIDR: 10.0.0.0/16
  • Tag: Key=valohai,Value=1

Subnets: valohai-subnet-x

  • Create one subnet per zone in your AWS Region
  • Example CIDR ranges:
    • valohai-subnet-1, 10.0.0.0/20, Availability Zone: a
    • valohai-subnet-2, 10.0.16.0/20, Availability Zone: b
    • valohai-subnet-3, 10.0.32.0/20, Availability Zone: c
    • valohai-subnet-4, 10.0.48.0/20, Availability Zone: d
  • Tag: Key=valohai,Value=1

Internet Gateway: valohai-igw

  • Attach the gateway to valohai-vpc
  • Tag: Key=valohai,Value=1

Routing Table

  • Rename the default route table of valohai-vpc to valohai-rt
  • Edit Routes:
    • 10.0.0.0/16 => local
    • 0.0.0.0/0 => <ID of valohai-igw>
  • Tag: Key=valohai,Value=1

Security Group: valohai-sg-workers

  • Inbound Rules
    • None
  • Outbound Rules
    • Keep default settings. All outbound traffic is allowed.
  • Tag: Key=valohai,Value=1

Security Group: valohai-sg-queue

  • Inbound Rules
    • Port 80 on 0.0.0.0/0for ACME tooling and LetsEncrypt challenge
    • Port 63790 on 34.248.245.191/32 for Redis over SSL from app.valohai.com
    • Port 63790 on <ID of valohai-sg-workers> for Redis over SSL from Valohai workers
  • Outbound Rules
    • Keep default settings. All outbound traffic is allowed.
  • Tag: Key=valohai,Value=1

Secrets Manager Secret: ValohaiRedisSecret

  • Type: “Other type of secrets”
  • Plaintext secret: Generate a random password, that includes lowercase and capital letters and numbers.
  • Tag: Key=valohai,Value=1
  • Automatic rotation: Keep the default setting (Disable automatic rotation)

Elastic IP: valohai-ip-queue

  • Allocate a new Elastic IP address from the Amazon’s pool of IPv4 addresses
  • Tag: Key=valohai,Value=1

EC2 Instance:

  • IMPORTANT: Replace the <queue_address> with the correct value!
  • OS: Ubuntu 20.04 LTS
  • Machine type: t3.medium (2 vCPU, 4GB RAM)
  • Instance Details:
    • VPC: valohai-vpc
    • IAM role: ValohaiQueueRole
  • User data:
#!/bin/bash
sudo apt-get update && sudo apt-get install awscli -y
export TOKEN=`curl -X PUT "http://169.254.169.254/latest/api/token" -H "X-aws-ec2-metadata-token-ttl-seconds: 21600"`
export REGION=`curl -H "X-aws-ec2-metadata-token: $TOKEN" http://169.254.169.254/latest/meta-data/placement/region/`
export PASSWORD=`aws secretsmanager get-secret-value --secret-id ValohaiRedisSecret --region $REGION | sed -n 's|.*"SecretString": *"\([^"]*\)".*|\1|p'`
export QUEUE=
curl https://raw.githubusercontent.com/valohai/worker-queue/main/host/setup.sh | sudo QUEUE_ADDRESS=$QUEUE REDIS_PASSWORD=$PASSWORD bash
unset PASSWORD

S3 Bucket

  • Name: valohai-data-<AWS_ACCOUNT_ID>
  • Turn on Block all public access
  • Tag: Key=valohai,Value=1
  • After you’ve created the bucket go to the bucket Permissions tab and set the CORS policy as below:
[
  {
      "AllowedHeaders": ["Authorization"],
      "AllowedMethods": ["GET"],
      "AllowedOrigins": ["*"],
      "ExposeHeaders": [],
      "MaxAgeSeconds": 3000
  },
  {
      "AllowedHeaders": ["Authorization"],
      "AllowedMethods": ["POST"],
      "AllowedOrigins": ["https://app.valohai.com"],
      "ExposeHeaders": [],
      "MaxAgeSeconds": 3000
  }
]

Next Steps

You’ll need to share the ARN of the ValohaiMaster Role with your Valohai contact, so they can finish the setup on app.valohai.com and enable your organization’s environments on the platform.
